Product Description:

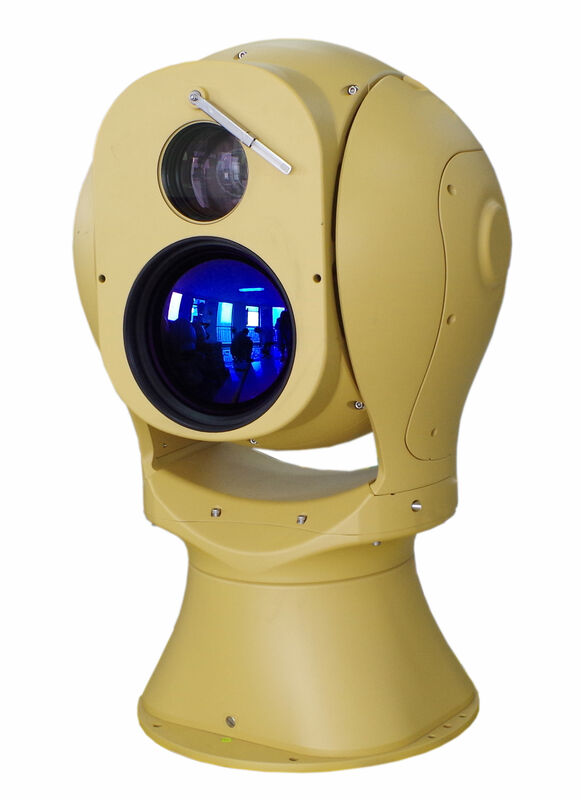

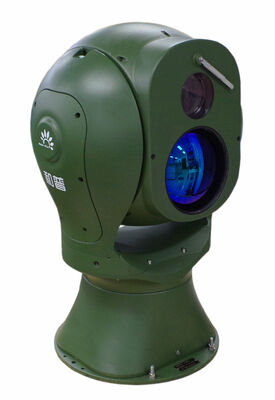

HP-Z50II-TRC6516-2186 heavy-duty dual-band photoelectric turntable is a long-range photoelectric detection system independently developed and designed by Hope Wish Company, which can integrate multi-spectrum detection modules such as high-definition visible camera, refrigeration thermal imaging, etc. , laser ranging and other modules can be installed as needed to realize the functions of all-weather, all-time, all-dimensional detection, location, tracking, identification and tracking of targets, the utility model can be widely applied to the three-dimensional security prevention of key areas and key targets such as border and coastal defense, military bases, airports, harbors, nuclear, biological and chemical facilities, etc. . The working distance can reach 13 km, 3 X 3 m fire detection range up to 10 km.
The product adopts spherical design, strong wind resistance, low stirring, stable and clear imaging; it adopts up and down split structure design, can be packed and transported independently, and disperses the whole machine weight, it greatly improves the product transport ability under the complex terrain environment; the use of Modular design, according to customer requirements, flexible collocation of detection channels, flexible selection of optical configuration, in order to meet the requirements of detection, identification and identification under various weather conditions such as full black and fog, rain, snow, etc. , the ball bin can be filled with nitrogen up to IP67 protection level, and can work reliably in the harsh environment in the field for a long time.
Features:
- Strong load capacity: it can support large magnification visible light camera, large aperture refrigeration thermal imager, to achieve ultra-long-range target observation;
- Detection spectrum width: integration of high-definition visible light, medium-wave thermal imaging, dual-band detection advantages complement each other, combining active and passive detection, multi-source data fusion processing, so that the target can not hide, to meet the day and night, all-weather environment monitoring needs;
- Fast turning speed: the speed of rotation is up to 80 °/s, the acceleration is up to 100 °/s 2, the start-stop is quick, the operation is smooth, it is helpful to capture and track the moving target quickly;
- Wide coverage: azimuth rotation range 0 ° ~ 360 °, pitch rotation range -90 ° ~ + 90 °, to achieve non-dead angle detection, full-dimensional coverage;
- High control precision: the precision angle encoder with high-precision closed-loop servo control system, positioning accuracy up to 0.02 ° , high-performance image processing unit with high-precision focusing control mechanism, to achieve accurate automatic focusing;
Technical Parameters:
| Model |
HP-Z50II-TRC6516-2186 |
| Detection Distance |
Vehicle:13km
Human 4.8km
Fire detection range of 2X2 meters up to 10,000m (3X3 pixels)
|
| Recognition Distance |
Vehicle:3.4km
Human 1.3km
|
| Thermal Camera |
- Detector: sixth generation uncooled focal plane array VOX detector
- Wavelength: 8 ~ 14 μm
- NETD: 40 Mk (@25 °C F1.0)
- Lens: 31 ~ 155 mm
- Lens control: Electric Zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed; 3CAM mode and AS + DOE optical structure, high infrared transmittance, the zoom process has no virtual focus and the axis is small
6. Image Enhancement: SDE Digital Image Enhancement Technology, enhance image details, support 255 level thermal image enhancement adjustment
7. Pseudo-color polarity: 16 pseudo-color images, hot black/hot white polarity
8. Image parameters: AGC automatic gain control, brightness, contrast adjustment
9. Electron doubling: 1.0 ~ 8.0 × continuous doubling (step length 0.1) , supporting optical electron relay doubling, supporting global hawk-eye diagram
10. Rangefinder: supports rangefinder
11. Bad Correction: support for bad correction
12. Image Correction: support manual correction, background correction, automatic correction time interval, Gamma correction parameters adjustable
13. Bright Light Protection: supports protection against Sun Damage
- Detector Array: 640 × 512
- Field of view: 20 ° × 15 ° - 4 ° × 3 °
|
| Visible Camera |
1. Sensor type: backlit ultra-low illumination star-level CMOS
- Minimum illuminance: Color: 0.0005 lux; black and white: 0.0001 lux; 0 lux (IRON)
- Lens: 11～860mm, Mega HD electric zoom; Manual/auto focus, 3A adaptive active focus algorithm
4. Image Processing: support for white balance, electronic shutter, frame accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic
- Day-night type pass light: 0.4-0.75 um visible broad spectral window and 0.8-0.95 um near infrared spectral window
6. Support electronic transmission fog, optical transmission fog
7. Intelligent Analysis: support intrusion detection, cross-border detection, entry/exit zone detection, mobile detection, hover detection
|
| |
1. Laser type: new infrared light GHT-III high-definition flood light source patent technology, focus spot brightness uniformity > 92%
2. Distance: 3,000 m
3. Wavelength: 810 nm military grade infrared laser/n4.
4. Illumination Angle: 0.5 ° ~ 20 ° , DSS digital step illumination Angle Control Technology/nLaser safety: ZQB laser beam processing patent technology, in line with the international IEC 60825 safety standards
|
| Audio and video |
- Resolution: 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 288; 352 × 240
- Visible resolution: 2592 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 240
- Video Coding: H. 265/h. 264/MJPEG, multi-stream support
4. Video rates: 32 KBPS to 16 Mbps
- Audio encoding: G. 711A/g. 711U/G726
- Image rollover: right/left/up/down/diagonal
- OSD settings: Support Channel name, time, PAN, field of view angle, focal length of the OSD display settings, support preset position name settings
|
| Hot Spots/fireworks alerts |
1. Alarm threshold: 255 settable
2. Target size: range can be set to automatically identify different size targets
3. Alarm target number: 1-16 can be set
4. Alarm mode: video overlay alarm box + data return (or switch) multiple alarm mode, alarm intuitive and easy to read
5. Front-end algorithm: optimized front-end fast processing algorithm, based on the original heat map data per frame analysis, alarm response 0.1 s, no delay, no loss of information
6. Support visible light smoke detection alarm
|
| Intelligent function |
- Fire Detection Alarm: Threshold Level 255, target size, target number 1-16 can be set, automatic selection of the most prominent target display, hot tracking
2. Intelligence analysis: support intrusion detection, cross-border detection, entry/exit area detection, motion detection, loitering detection, people gathering, fast moving, target tracking, items left behind, items taken; Human/vehicle target detection, face detection; and support 16 regional settings; support intrusion detection, human, vehicle filtering function; support target temperature filtering function
3. Automatic tracking: single-scene tracking support multi-scene tracking support panoramic tracking support alarm linkage tracking
4. Intelligent Information Fusion: support 512 AR intelligent information fusion, support point of fire, intelligent analysis video identification information fusion, support azimuth angle, field of view, focal length, multiple information fusion
5. Image Fusion: support 18 kinds of dual-light fusion mode, support picture-in-picture function
6. Alarm management: Support Alarm capture upload
|
| Enhanced function |
1. Ranging function: support passive ranging; support optional laser ranging
2. Strong light protection: support, protection from Sun Burn function
3. Temperature Correction: non-thermal design, imaging sharpness is not affected by temperature
4. Scene mode: support multi-configuration scene, adapt to different environment applications
5. Auto-focus tuning: support remote auto-focus accuracy parameter adjustment, adapt to different scenarios
6. Day-night cruise: day-night cruise groups with different preset, day cruise 1-40 preset, night cruise 41-80 preset, according to the state of light automatically switch day and night, adapt to different space-time scenarios
7. Lens servo: support lens pre-position, focal length back, focal length positioning function
8. Power-off memory: support to restore the pre-power-off position, pre-position state, cruise state, line scan state
9. Off and on: support
10. Camera diagnosis function: support network alarm, support IP conflict alarm, support illegal access alarm (illegal access number, lock time can be set) , support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card) , video block alarm, anti-sun damage (support threshold, block time can be set)
11. Life Cycle Management: Health Index recording function, support working time, shutter times, working temperature, limit temperature, etc.
12. Remote Maintenance: with fault inquiry, self-examination, remote restart function; online upgrade, remote upgrade
13. Keyframe settings: support keyframe interval 100-level adjustable
14. Configuration File: Support Configuration File Import and export function
15. Web Access: support WEB full function configuration, remote online upgrade
|
| Security control |
1. Support illegal access alarm: illegal access number, lock time can be set
2. Support three levels of user rights management, administrators, operators, ordinary users
3. Security mode: authorized user name and password, support IP white list and black list, Mac White list and black list
4. User Login Lock
|
| Servo turntable |
1. Structure: spherical, multi-dimensional free-form surface shape, small wind resistance, strong anti-shake, can resist 12 strong wind
2. Two-axis two-frame, up and down split design, can be independent packaging transport, rapid combination
3. Windows: Dual/triple windows, 2/3 band sensors, wiper
4. Level range: N × 360 ° continuous rotation, after power failure can be mechanically locked
5. Pitch range:-90 ° ~ + 90 ° , with soft limit function, program can be set
6. Rotation Speed: level 0.01 ° ~ 80 °/s, pitch 0.01 ° ~ 60 °/s
7. Acceleration: 100 ° S 2 level, 100 ° S 2 pitch
8. Speed adaptation: with intelligent induction speed change function, support lens focal length speed adaptation function
9. Driving mode: adopting high torque rare earth permanent magnet synchronous motor direct drive, high speed start and stop
10. Positioning accuracy: better than 0.02 °
11. Location Time: less than 4s
12. Zero setting: support for horizontal and pitch zero setting
13. Preset cruise: 3000, supports 16 cruise routes, each can support 256 preset positions
14. Path scan: Support Preset Point Cruise, day and night cruise, line scan, frame scan, apple skin scan, scan speed can be set
15. Over watch: preset position/pattern scan/cruise scan/vertical scan/frame scan/panoramic scan/apple peel scan/horizontal fan scan
16. Motor Protection: turntable block and turn protection, high reliability
17. Gyro image stabilization: optional two-axis gyro stabilization, pitch and roll ≤ ± 10 ° , period greater than 6 seconds, los stabilization accuracy ≤2 mrad (RMS)
|
| Electrical interface |
1. Network interface: 1-way RJ45,10/100base-t adaptive
2. Network protocol: support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocol; support ONVIF and GB28181 protocol
3. Secondary development: provide free SDK, easy to use or convenient secondary development
4. Physical interface: Alloy Waterproof Aviation Plug
5. Optical network: (optional built-in Fiber Module, single mode fiber output, improve anti-interference)
|
| Power consumption |
- Power: with ultra-wide input power adapter, AC90V ~ 305V to DC48V
2. Power consumption: the maximum power consumption of the turntable is less than 500W and the stable power consumption is less than 150W
|
| Environmental Indicator |
- Working Temperature:-40 °C ~ + 60 °C
- Storage Temperature:-45 °C ~ + 70 °C
- Humidity: < 90% Rh
- Lightning protection: Interface Circuit built-in surge protection, 6000V
- Salt spray: in PH 6.5 ~ 7.2, continuous spray 96 hours, no change in the surface
- Protection class: IP66(Ball Chamber air-tight IP67)
|
| Dimension weight |
Dimensions: Ф565mm×H880mm
Total weight: ≤105 kg
|
|
Dedicated platform
(optional)
|
1. Function Module: video preview and playback, PTZ control, equipment management, user management, intelligent analysis service, GIS Map Service, information management
Fire protection functions: Fire Point identification, smoke identification, fire warning location, resource management, SMS warning, weather access
3, intelligent functions: Fire Alarm, support area invasion, enter the area, leave the area, automatic tracking and other intelligent analysis and alarm functions, can be extended to support radar linkage, binocular arbitrary angle panoramic mosaic, 3-d magnification
User Management: multi level users, departments and roles manage and support 999 front end departments.
4. GIS map: Fire Alarm and location, support ranging, area measurement functions, video display control, support for custom landing plot, support the conventional function of map electronic map drag, mouse scroll level zoom in or out, support display eagle eye map, scale.
5, support Chinese and English, support skin, support custom menu bar, support handle operation.
6. Access to mainstream vendors'front end products such as Haicang/Dahua/USV and manage the NVR video features. Support for 999 front end/departments
|
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
Applications:
The Hope-Wish Long-Distance Thermal Camera, model HP-, is a cutting-edge Long Range Thermal Camera designed to deliver exceptional thermal imaging performance in a variety of application occasions and scenarios. Originating from China, this advanced Thermal Imaging Camera boasts a high resolution of 1920x1080, ensuring crisp and detailed thermal images even at extended distances. With a weight of 15kg, it balances portability with robust construction, making it suitable for both stationary and mobile setups.
One of the primary application occasions for the Hope-Wish Long-Distance Thermal Camera is in security and surveillance. Its PTZ Thermal sensor type allows for precise pan and tilt movements, with a tilt range from -45° to +90° and continuous 360° rotation, enabling comprehensive monitoring of vast areas such as industrial complexes, borders, and critical infrastructure. This makes it invaluable for perimeter security, intrusion detection, and night-time surveillance where visibility is compromised.
In addition to security, the Long Range Thermal Camera is widely utilized in search and rescue operations. The high-resolution thermal imaging capabilities enable rescuers to detect human heat signatures over long distances, even in challenging environmental conditions like smoke, fog, or darkness. Its lightweight design further facilitates deployment in rugged terrains and emergency situations, enhancing the efficiency and success rate of rescue missions.
Another significant scenario where the Hope-Wish Long-Distance Thermal Camera excels is in wildlife monitoring and environmental research. Researchers and conservationists use this Thermal Imaging Camera to observe animal behavior without disturbing their natural habitat. The camera’s pan and tilt flexibility combined with long-distance detection ensures comprehensive coverage of large wildlife reserves or forested areas.
Furthermore, this Long-Distance Thermal Camera is an excellent tool for industrial inspections. It can detect heat anomalies in power plants, manufacturing facilities, and pipelines, helping to prevent equipment failures and enhance operational safety. The ability to continuously rotate and tilt makes it easier to scan complex structures efficiently.
Overall, the Hope-Wish HP- Long Range Thermal Camera is a versatile and reliable solution suitable for various demanding application occasions and scenarios, from security and rescue to environmental monitoring and industrial inspection. Its advanced features and robust design make it a preferred choice for professionals requiring high-performance thermal imaging over long distances.
