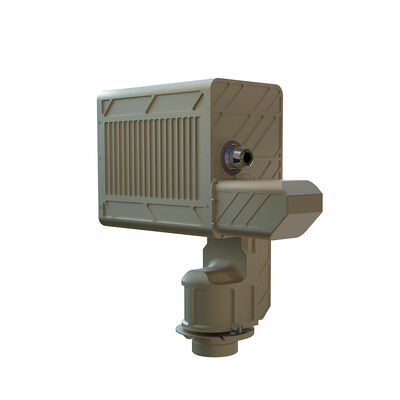

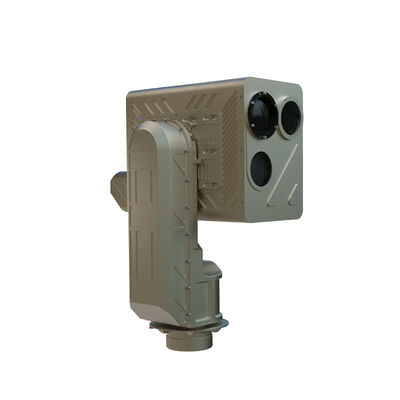

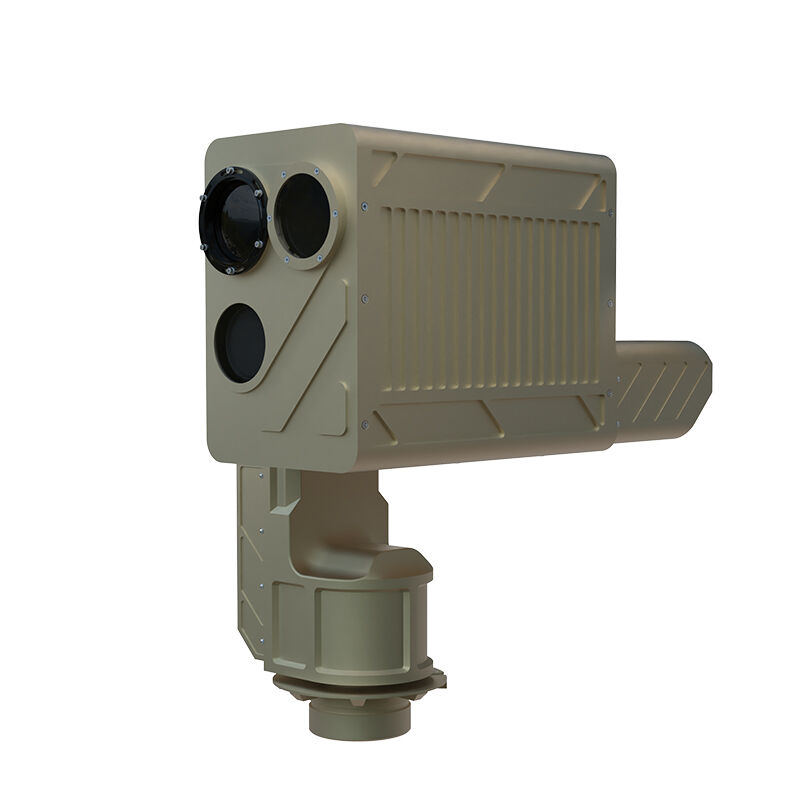

Lightweight laser jamming interception system Anti drone radar

Lightweight laser jamming interception system Anti drone radar
Lightweight laser jamming interception system Anti drone radar Lightweight laser jamming interception system Anti drone radar Lightweight laser jamming interception system Anti drone radar

Duży Obraz :  Lightweight laser jamming interception system Anti drone radar

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: Hope-Wish
Orzecznictwo: CE, FCC, ROHS, ISO9001
Numer modelu: HP-RJH2000
Zapłata:
Minimalne zamówienie: 1
Cena: negotiable
Szczegóły pakowania: Drewniana skrzynka
Czas dostawy: 60-180
Zasady płatności: L/C, D/A, D/P, Western Union, Moneygram
Możliwość Supply: 50 jednostek miesięcznie

Lightweight laser jamming interception system Anti drone radar

Opis
Moc lasera: ≥ 2000 W Zakres kąta pokrycia: Azymut: 360 °; Pitek: 60 °
Rozmiar opakowania: 20,00cm * 20,00cm * 10,00cm Czas pracy baterii: > 5 godzin
Zakres zamiatania fazy: ±30° Kształt: Prostopadłościan
stan produktów: Magazyn Wodoodporny: IP68
Podkreślić:

lightweight anti drone radar system

,

laser jamming interception system

,

anti drone radar with jamming

Product Description:

The lightweight laser jamming interception system is mainly aimed at small drone targets, completing the physical interception of threat targets in the protected airspace, and the optoelectronic jamming to prevent small drones from conducting reconnaissance and "suicide" attacks. It adopts a miniaturized and modular design approach, which can be quickly moved, deployed and set up for use.



Technical Parameters:

 ModelHP-RJH2000
Tracking systemLaser power≥2000W
Maximum treatment time200s/battery powered (10-15 seconds working, 30-60 seconds resting)
Treatment range50m~300m(DJI Phantom 4)
Tracking accuracy≤25urad
Visible light trackingSensor1'' progressive scan CMOS
Resolution2048 × 2048
Sensor size11.26 mm × 11.26 mm
Pixel size5.5 μm × 5.5 μm
Focal length500mm
Field of view0.3°× 0.3°
Thermal imaging trackingDetector typeuncooled Vox
Pixel size12μm
Resolution640 × 512
Spectral range8~14μm
NETD≤40mK@F1.0,300K
Focal length60mm
Field of view7.3°× 5.5°
Spatial resolution0.2mrad
Digital zoom1×/2×/3×/4×
False colorWhite hot/Black hot/Rainbow/Iron red/Lava/Sky/Purple orange/Gradual red/Gradual green/Gradual blue
Image processingNon-uniformity correction/digital filtering noise reduction/digital detail enhancement
LRFWavelength1535nm
Light source typeDiode pump
Distance measurement capability

≥500m(DJI Phantom 4);
≥5000m

Distance measurement accuracy±1m
Operating frequency1Hz/5Hz/10Hz
Accuracy rate98%
laser illuminatorWavelength808 ± 5nm
Laser power11 ± 1W
Illumination angle1°~65°
Laser controlAutomatic/Manual
Illumination distance≥1500m
PTZHorizontal speed0.01°~50°/s
Horizontal Angle-170°~+170°
Vertical Angle-20°~+80°
Tracking accuracy≤0.5mrad
 Communication interface1×RS422/1×CAN/1×RJ45
Power interfaceDC20V~DC40V
Protection levelIP65
Operating temperature-20℃~+50℃
Storage temperature-25℃~+55℃
Power consumption≤400W
Dimensions<500mm × 400mm × 550mm
Weight≤17Kg
Laser dimensions<500mm × 360mm × 280mm
Laser weight (including battery)≤17Kg

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

Lightweight laser jamming interception system Anti drone radar 0Lightweight laser jamming interception system Anti drone radar 1
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
Lightweight laser jamming interception system Anti drone radar 2Lightweight laser jamming interception system Anti drone radar 3Lightweight laser jamming interception system Anti drone radar 4
